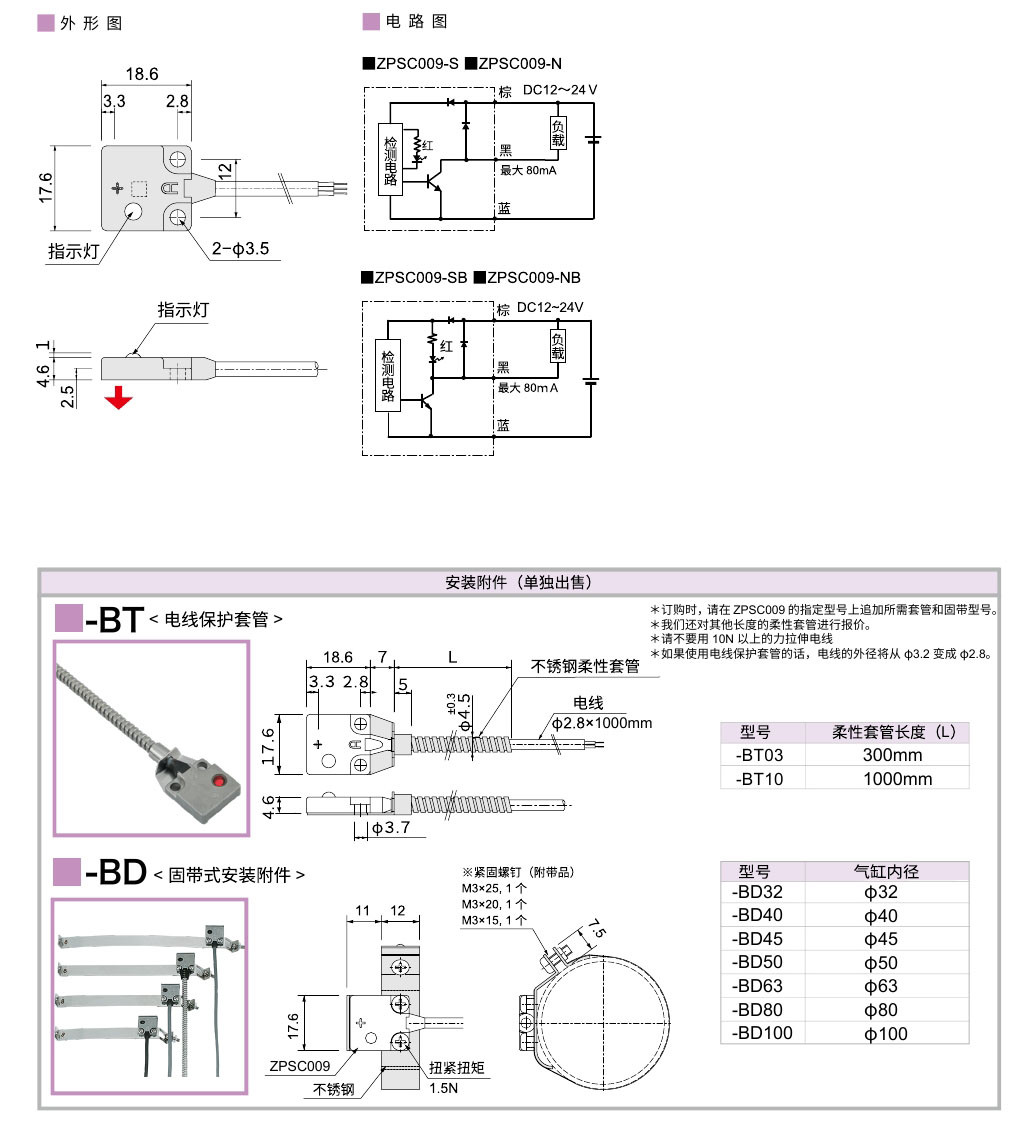

| voltage | DC5 ~ 24V (note |
| Detect magnetic poles | LSPSC009-S/LSPSC009-SB: N pole |
| LSPSC009-N/LSPSC009-NB: S pole |
| Magnetic sensitivity | 2.5~3.5mT |
| Magnetic detection direction | down |
| output method | LSPSC009-S/LSPSC009-N: |
| NPN normally open (ON during operation) |
| LSPSC009-SB/LSPSC009-NB: |
| NPN normally closed (OFF during action) |
| Output current | 80mA MAX (Note |
| Current consumption | 15mAMAX |
| Response time | 5µsec |
| Withstand voltage | AC1000V |
| 1 minute, between the entire charging part and the casing |
| Insulation resistance | DC250V |
| 20MΩ or more, between the entire charging part and the casing |
| Working temperature | - 20℃~ +85℃ (no condensation) |
| Working environment humidity | 20~95%RH |
| Wire specifications | Φ3.2×1000mm |
| LSPSC009-S/LSPSC009-N: Gray |
| LSPSC009-SB/LSPSC009-NB: black |
| shell material | cast zinc alloy |
| Install | M3 screws, tightening torque 1.5N·m |
| indicator light | red |
| protection level | IP67 |
※1 Output conversion, current amplification, and cable extension can be achieved through wire accessories. Please refer to P.127 ~ 130 for details.
Note: 80mA is DC12~24V
