| voltage | DC5~24V |
| Detect magnetic poles | LSPSC009E-S: S pole |
| LSPSC009E-N: N pole |
| Magnetic sensitivity | 2.5~3.5mT |
| Magnetic detection direction | down |
| output method | NPN normally open (ON during operation) ※1 |
| Output current | 15mA MAX ※1 |
| Current consumption | 8mAMAX |
| Response time | 5µsec |
| Withstand voltage | AC1000V |
| 1 minute, between the entire charging part and the casing |
| Insulation resistance | DC250V |
| 20MΩ or more, between the entire charging part and the casing |
| Working temperature | - 20℃~ +85℃ (no condensation) |
| Working environment humidity | 20~95%RH |
| Wire specifications | φ2.8×1000mm ※1 |
| LSPSC009E-S: gray |
| LSPSC009E-N: black |
| shell material | cast zinc alloy |
| Install | M3 screws, tightening torque 1.5N·m |
| protection level | IP67 |

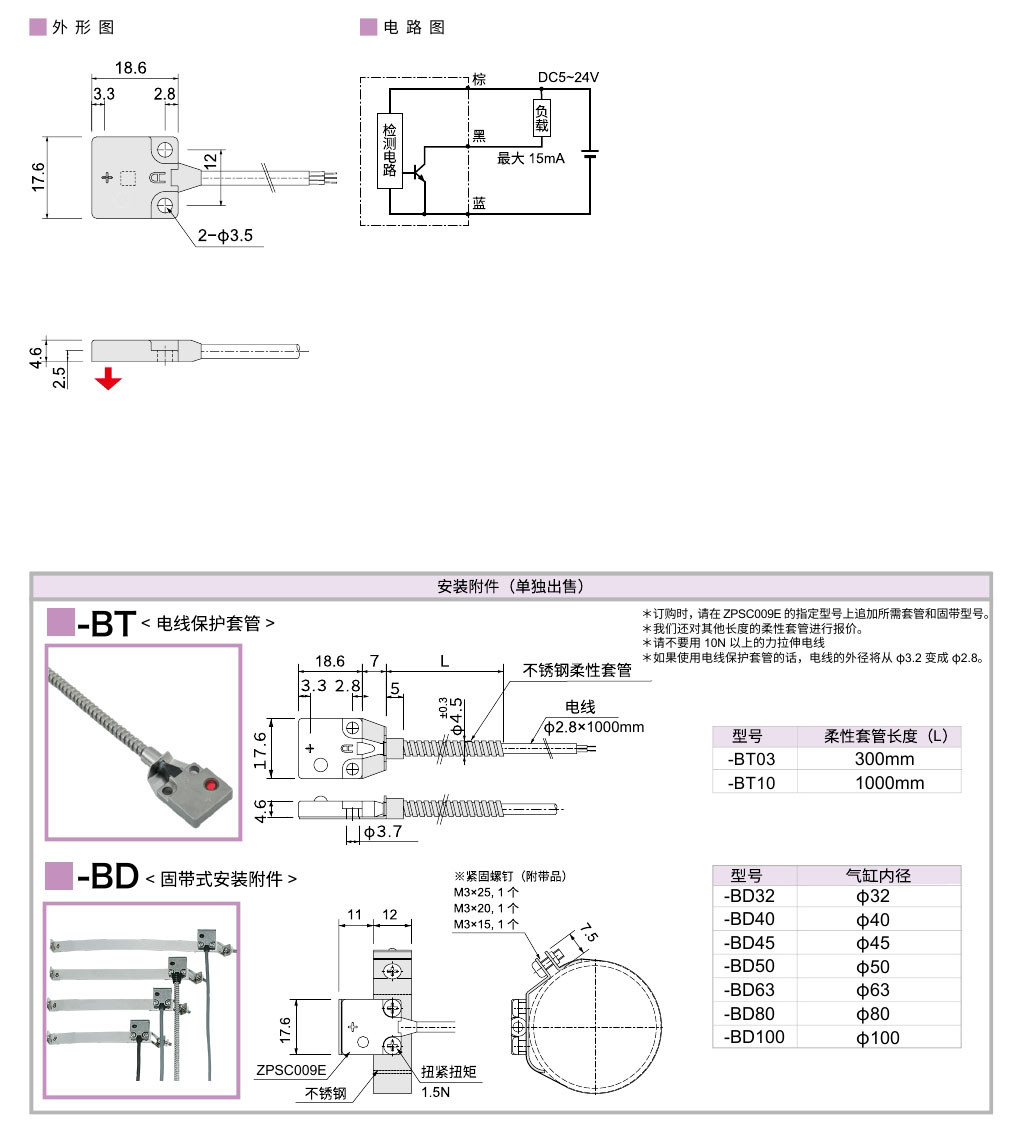

※1 Output conversion, current amplification, and cable extension can be achieved through wire accessories. Please refer to P.127 ~ 130 for details.
