voltage	DC5 ~ 24V (note
Detect magnetic poles	LSPSC01 □ PS: S pole
	LSPSC01 □ PN: N pole
Magnetic sensitivity	3~4mT
Magnetic detection direction	down

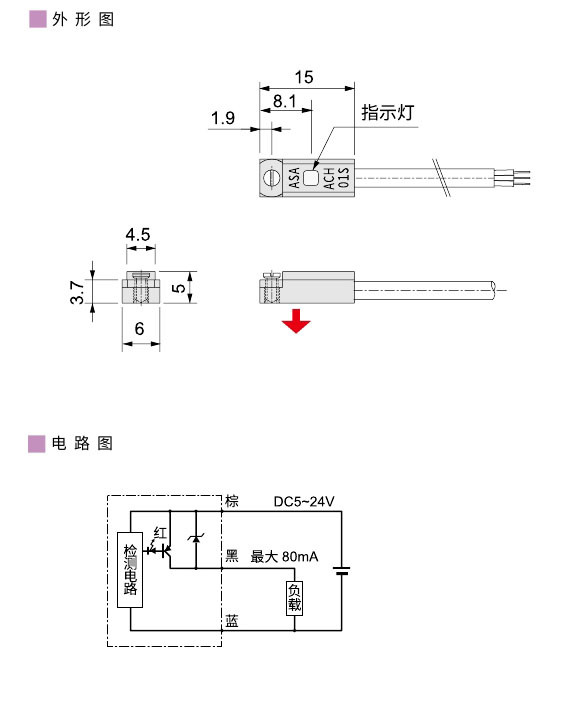

output method	PNP Normally open (ON during operation) ※1
Output current	80mA MAX (Note
Current consumption	8mAMAX
Response time	16μ sec or less
Withstand voltage	AC1000V
	1 minute, between the entire charging part and the casing
Insulation resistance	DC250V
	20MΩ or more, Between the entire charging part and the casing
Working temperature
Working environment humidity
Wire specifications	φ2.8×1000mm※1
	S pole: gray
	N pole: black
shell material	Glass fiber reinforced resin: black
Install	Comes with screw tightening torque 0.06N·m
indicator light	red
protection level	IP67

※1 Output conversion, current amplification, and cable extension can be achieved through wire accessories. Please refer to P.127 ~ 130 for details.

Note: 80mA is DC12~24V
