| voltage | DC5~24V |
| Detect magnetic poles | S pole |
| Magnetic sensitivity | 5~7mT |
| Magnetic detection direction | forward |
| output method | NPN normally open (ON during operation)※1 |
| Output current | 10mA MAX ※1 |
| Current consumption | 8mAMAX |
| Response time | 5µsec |
| Withstand voltage | AC1000V |
| 1 minute, between the entire charging part and the casing |
| Insulation resistance | DC250V |
| 20MΩ or more, between the entire charging part and the casing |
| Working temperature | -20° C~+85° C (no condensation) |
| Working environment humidity | 20~95%RH |

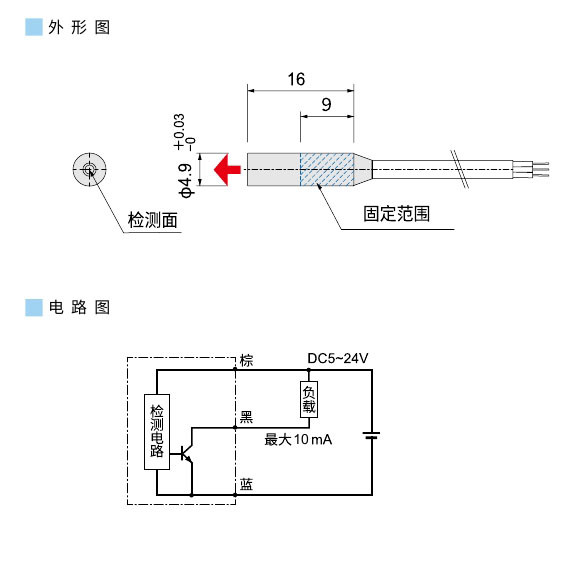

| Wire specifications | φ2.8x1000mm gray※1 |
| shell material | SUS tube |
| Install | M3 fixing screw, tightening torque 0.2N·m or less |
| protection level | IP65 |
※1 Output conversion, current amplification, and cable extension can be achieved through wire accessories. Please refer to P.127 ~ 130 for details.
