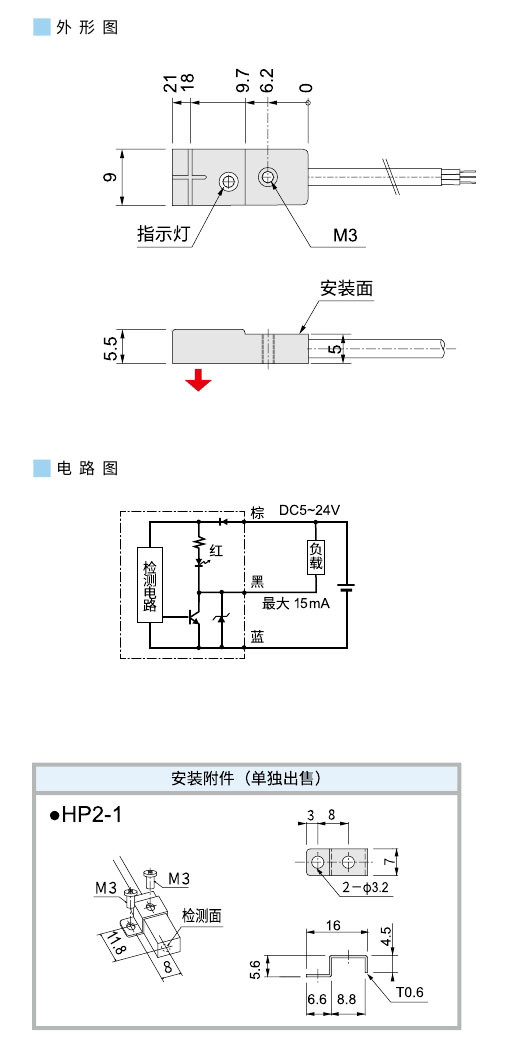

| voltage | DC5 ~ 24V |
| Detect magnetic poles | S pole |
| Magnetic sensitivity | 2.5~3.5mT |
| Magnetic detection direction | down |
| output method | NPN normally open (ON during operation)※1 |
| Output current | 15mA MAX ※1 |
| Current consumption | 8mA MAX |
| Response time | 5μ sec |
| Withstand voltage | AC1000V |
| 1 minute, between the entire charging part and the casing |
| Insulation resistance | DC250V |
| 20MΩ or more, between the entire charging part and the casing |
| Working temperature | -20° C~+85° C (no condensation) |
| Working environment humidity | 20~95%RH |
| Wire specifications | φ2.8x1000mm gray※1 |
| shell material | Glass fiber reinforced resin: green |
| Install | M3 screw, tightening torque 0.2Nm |
| It is recommended to use adhesive to prevent loosening. |
| indicator light | red |
| protection level | IP65 |
※1 Output conversion, current amplification, and cable extension can be achieved through wire accessories. Please refer to P. 127 ~ 130 for details.
