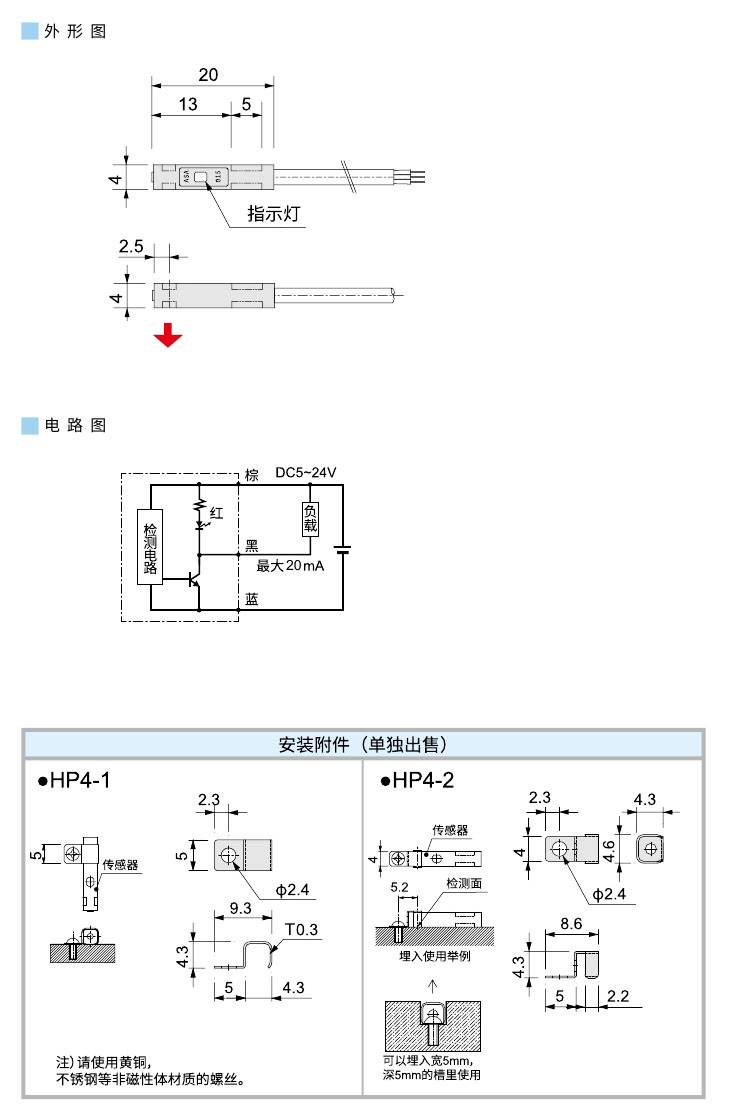

| voltage | DC5~24V |
| Detect magnetic poles | LSPS015-S: S pole |
| LSPS015-N: N pole |
| Magnetic sensitivity | 3~ 4mT |
| Magnetic detection direction | down |
| output method | NPN normally open (ON during operation)※1 |
| Output current | 20mA MAX ※1 |
| Current consumption | 8mAMAX |
| Response time | 16µsec |
| Withstand voltage | AC1000V |
| 1 minute, between the entire charging part and the casing |
| Insulation resistance | DC250V |
| 20MΩ or more, between the entire charging part and the casing |
| Working temperature | -20° C~+85° C (no condensation) |
| Working environment humidity | 20~95%RH |
| Wire specifications | Φ2.6x1000mm ※1 |
| S pole: gray |
| N pole: black |
| shell material | Glass fiber reinforced resin: black |
| indicator light | red |
| protection level | IP67 (can be used at work sites where cutting fluid and oil spray are splashed) |
※1 Output conversion, current amplification, and cable extension can be achieved through wire accessories. Please refer to P.127 ~ 130 for details.
