LSMB
2025-03-13
LSMB
Technical Parameters

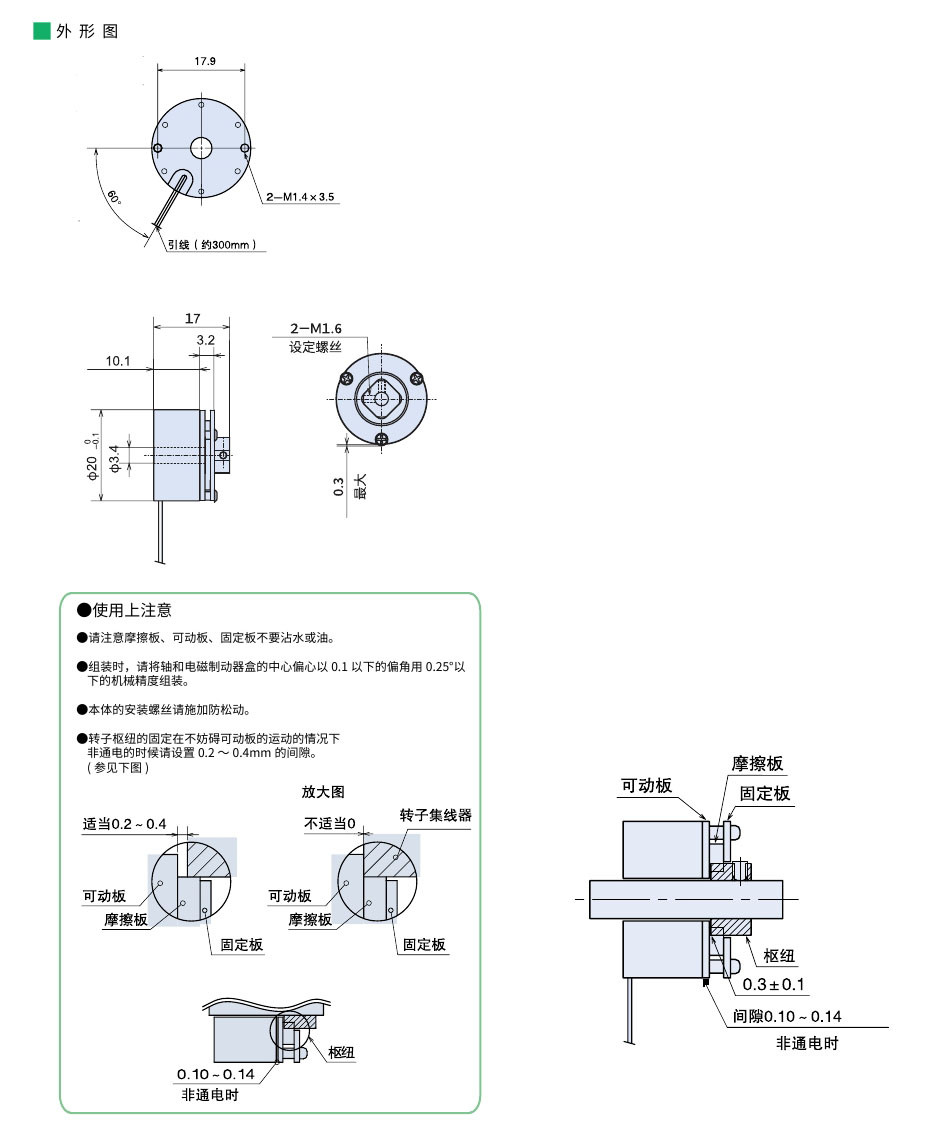

Outline drawing & circuit diagram

model Dedicated power supply specifications
LSMB20 () P24
Rated voltage DC24V±10%
Instantaneous maximum power 6.7W
Power consumption Below 1W
static friction moment 7N.cm
Pick-up time 40msec or less
release time 10msec or less
Pull-in voltage Below 20V
Release voltage 10V or more
moment of inertia 0.3g.cm2
Insulation resistance DC500V ≥ 10MΩ
Insulation withstand voltage AC1000V - 1 minute
Insulation level Class F
weight 33g
Rotor inner diameter φ2, φ2.5, φ3 (H7)
