LSMB
2025-03-13
LSMB
Technical Parameters

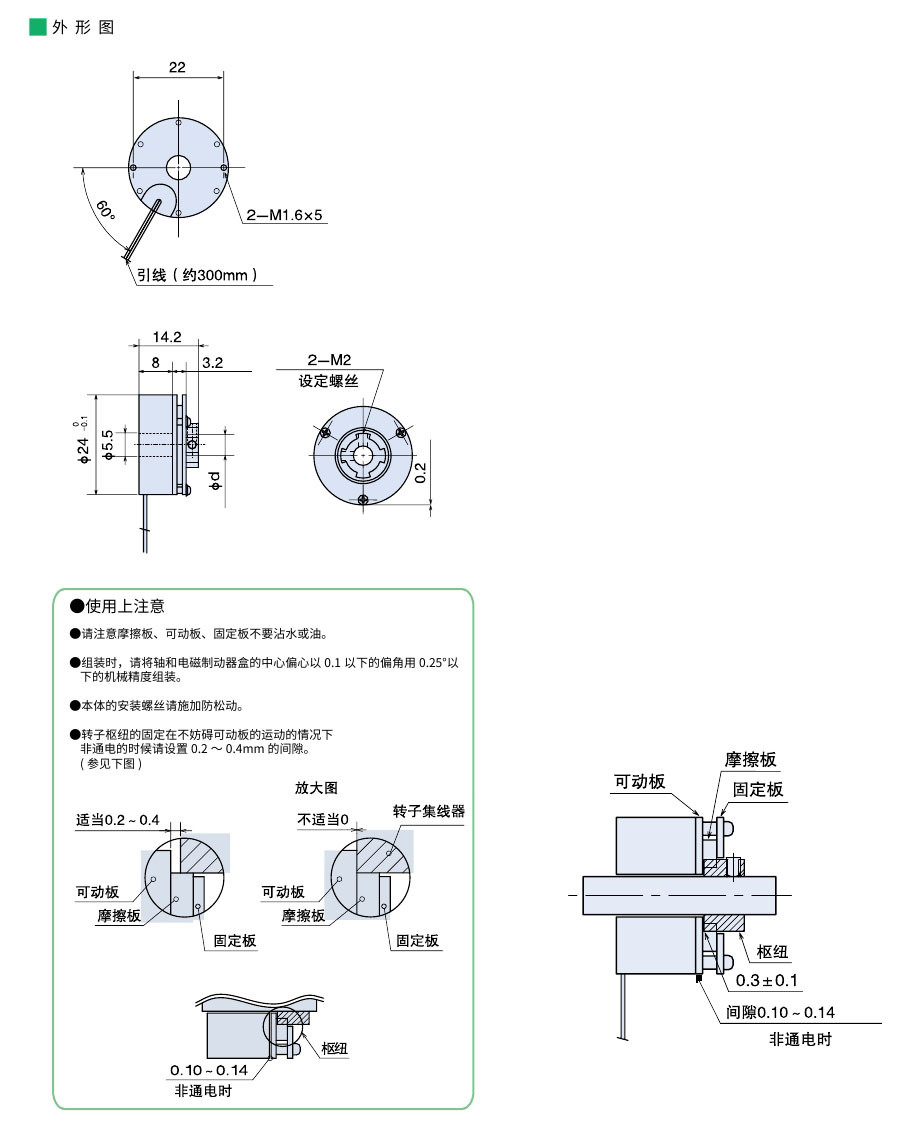

Outline drawing & circuit diagram

modelDedicated power supply specifications
LSMB24  ()  P24
Rated voltageDC24V±10%
Instantaneous maximum power8.5W
Power consumptionBelow 1W
static friction moment10N.cm
Pick-up time40msec or less
release time10msec or less
Pull-in voltageBelow 20V
Release voltage10V or more
moment of inertia0.9g.cm2
Insulation resistanceDC500V  ≥ 10MΩ
Insulation withstand voltageAC1000V - 1 minute
Insulation levelClass F
weight42g
Rotor inner diameterφ3、φ4、φ5 (H7)
