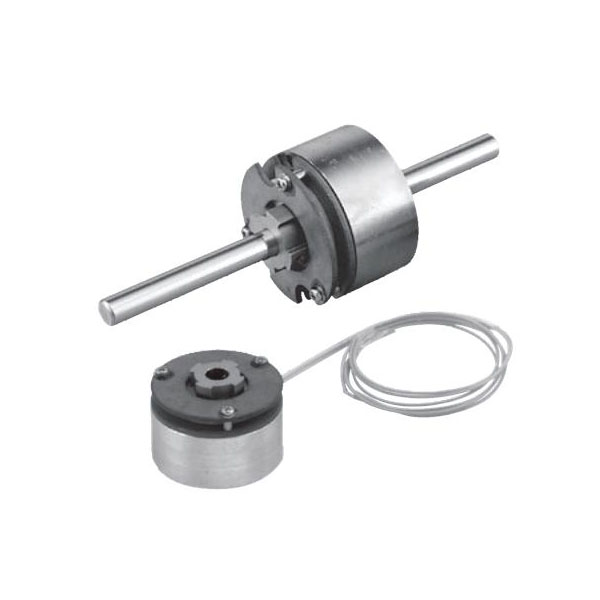

LSMB
2025-03-13
LSMB
Technical Parameters

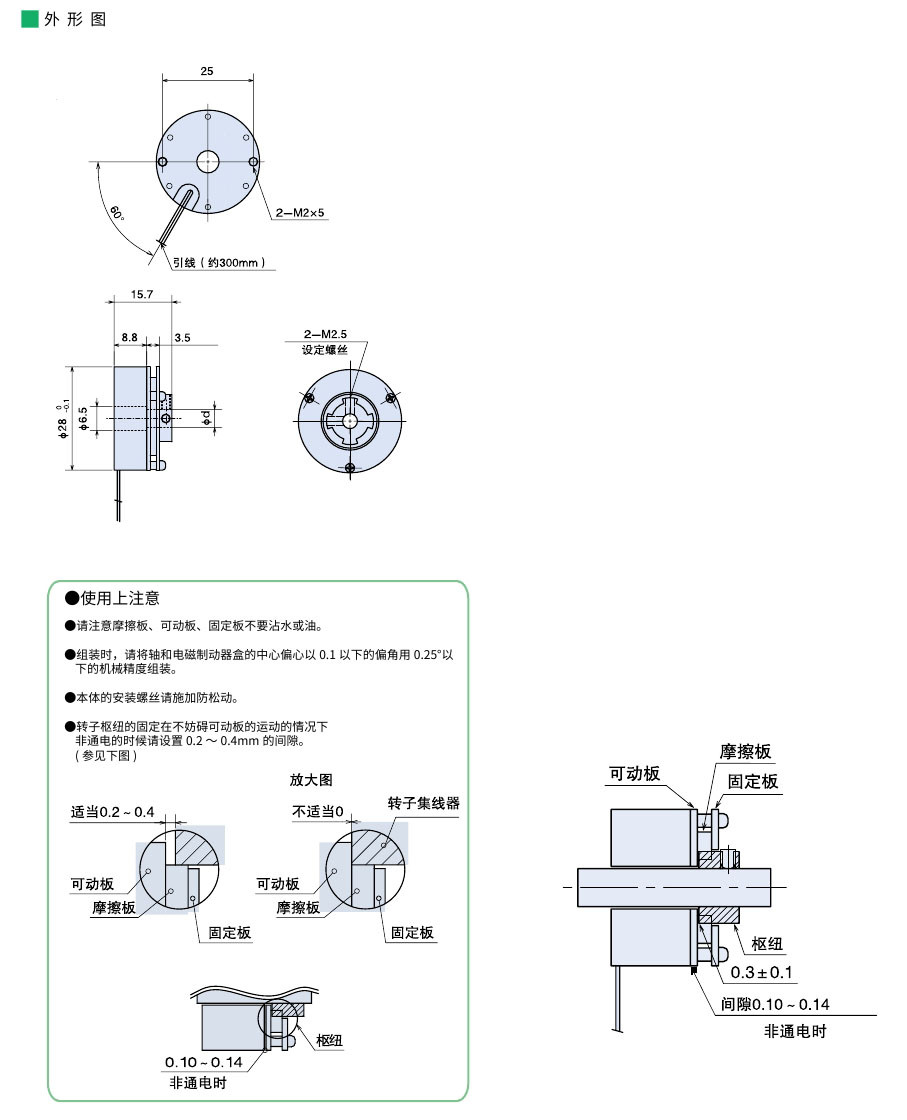

Outline drawing & circuit diagram


modelSingle unit specificationsDedicated power supply specifications
LSMB2S  ()  A24LSMB2S  ()  P24
Rated voltageDC24V±10%
Instantaneous maximum power
7.6W
Power consumption1.6W or lessBelow 1W
static friction moment12N.cm18N.cm
Pick-up time40msec or less
release time10msec or less
Pull-in voltageBelow 20V
Release voltage3V or more10V or more
moment of inertia1.2g.cm2
Insulation resistanceDC500V  ≥ 10MΩ
Insulation withstand voltageAC1000V - 1 minute
Insulation levelClass F
weight39g49g
Rotor inner diameterφ4、φ5、φ6 (H7)
