voltage	DC5~24V
Detect magnetic poles	S pole
Magnetic detection direction	side
Maximum detection distance	12mm (when used in combination with door magnets)
output method	NPN normally open (ON during operation) ※1
Output current	15mAMAX	※1※2
Current consumption	8mAMAX
Response time	5µsec
Withstand voltage	AC1000V
	1 minute, between the entire charging part and the casing
Insulation resistance	DC250V
	20MΩ or more, between the entire charging part and the casing
Working temperature	- 20℃～ +95℃ (no condensation)
Working environment humidity	20~80%RH
Wire specifications	φ2.8×1000mm gray
shell material	Glass fiber reinforced resin: black
Install	M3 nut, tightening torque 0.8N·m
protection level	IP67

※1 Output conversion, current amplification, and cable extension can be achieved through wire accessories. Please refer to P.127 ~ 130 for details.

※2 Output current 80mAMAX Please refer to P107.

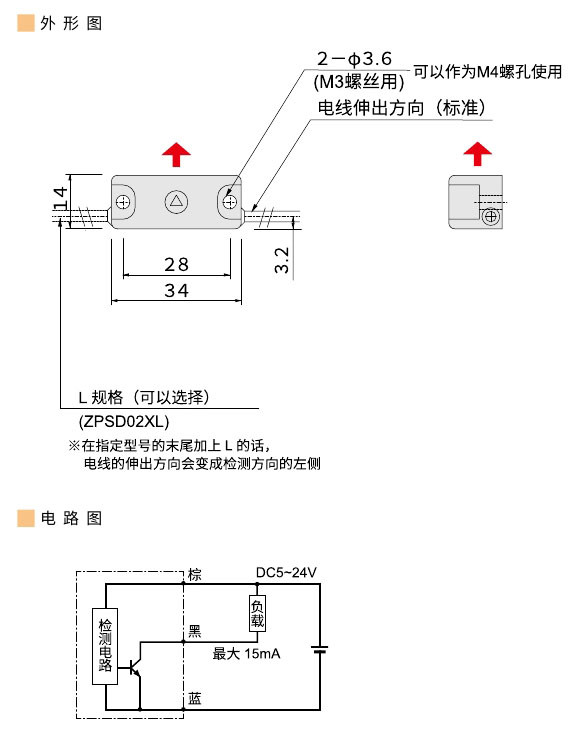

※3 Can be used by M4 tap hole processing.

Note: 80mA is DC12~24V
