| voltage | DC12~24V |
| Detect magnetic poles | S pole |
| Magnetic detection direction | side |
| Maximum detection distance | 12mm (when used in combination with door magnets) |
| output method | LSPSD02XP: |
| NPN normally open (ON during operation) ※1 |
| LSPSD02XPB: |
| NPN normally closed (OFF during action) |
| Output current | 80mA MAX ※2 |
| Current consumption | 12mAMAX |
| Response time | 5µsec |
| Withstand voltage | AC1000V |
| 1 minute, between the entire charging part and the casing |
| Insulation resistance | DC250V |
| 20MΩ or more, between the entire charging part and the casing |
| Working temperature | - 20℃~ +85℃ (no condensation) |
| Working environment humidity | 20~80%RH |
| Wire specifications | φ2.8×1000mm Gray※1 |
| LSPSD02P: gray |
| LSPSD02PB: black |
| shell material | Glass fiber reinforced resin: black |

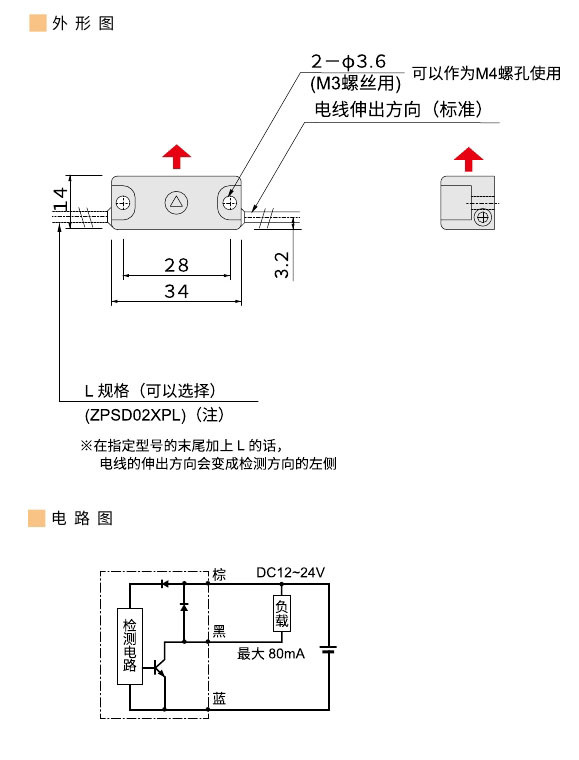

| Install | M3 nut, tightening torque 0.8N·m ※3 |
| protection level | IP67 |
※1 Output conversion, current amplification, and cable extension can be achieved through wire accessories. Please refer to P.127 ~ 130 for details.
※2 Output current 15mAMAX, please refer to P106.
※3 Can be used by M4 tap hole processing.
Note: 80mA is DC12~24V
