LSCC-PB1
2025-03-13
LSCC-PB1
Technical Parameters

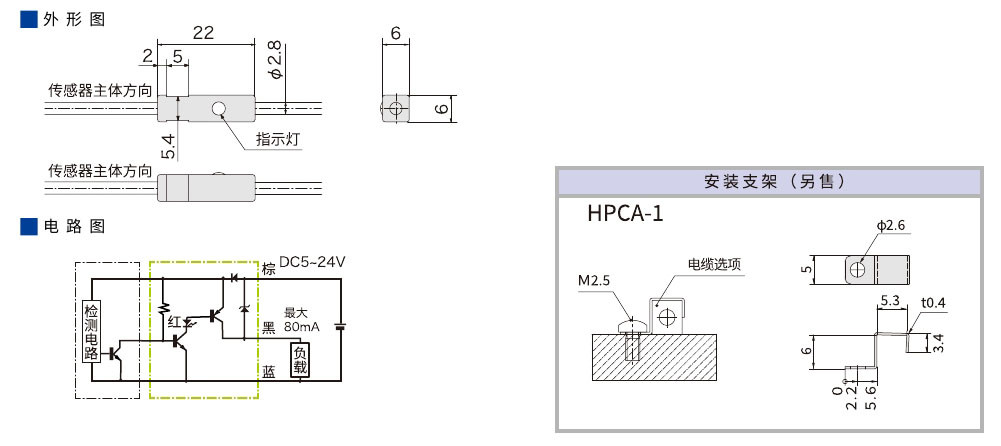

Outline drawing & circuit diagram

Work performance

PNP current increase (NPN → PNP conversion)

Reverse B action (NO → NC conversion)


Specification

voltage DC5 ~ 24V Note)
output method PNP Normally Closed (OFF during approach/action)
Output current 80mA MAX Note)
Output status high level
indicator light Red LED (light off when ON)

Note) 80mA only in the case of DC12~24V
